Running Gear Maintenance early Panther D (1:48)

3D-printed resin conversion kit for running gear repair set for PzKw V "Panther" Ausf. D Early Version

• Scale 1:48
• Designed based on original construction drawings by a professional CAD engineer
• Suitable for early variants of the vehicle
• Contains all components for one side of the vehicle

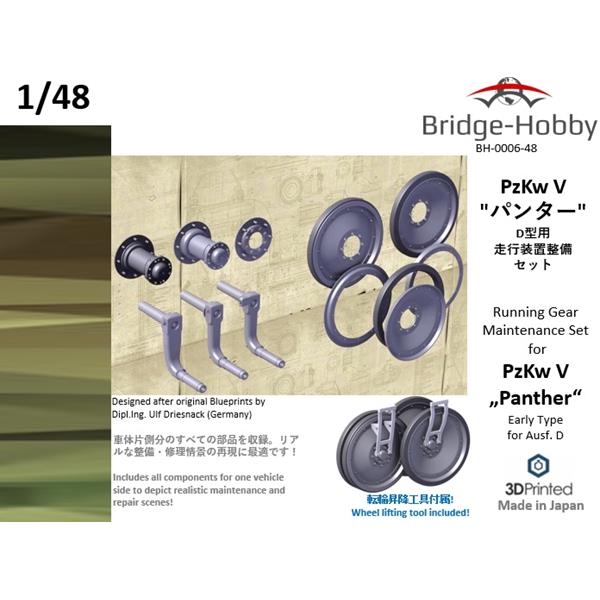

• Kit contents:
  • Wheel discs for inner and outer road wheel pairs
  • Two fully disassembled road wheels with separate rubber tires
  • All swing arm variants used in the original vehicle
  • Different hubs with separate wheel discs for standard and reinforced swing arms
  • Special "road wheel lifter" tool for lifting inner and outer road wheels
  • Separate hex nuts

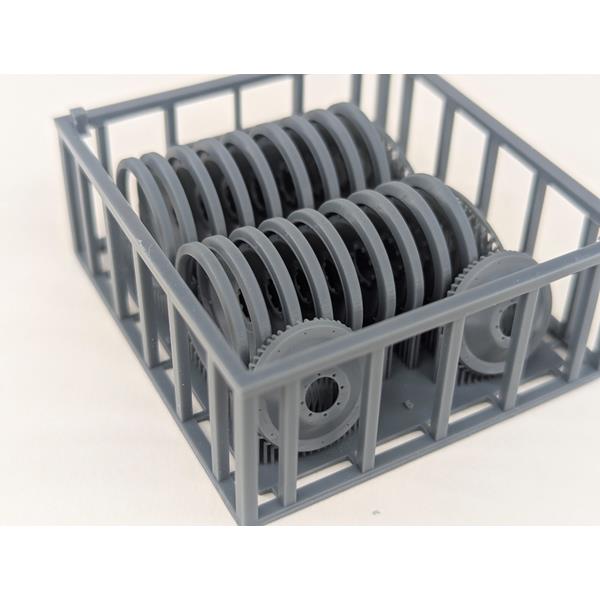

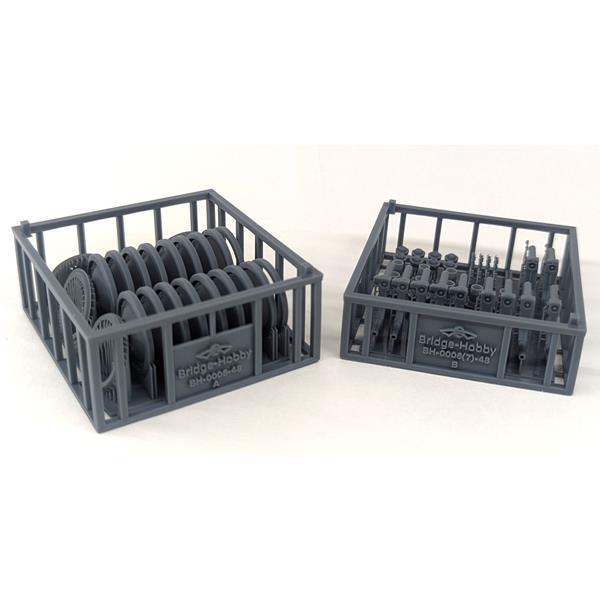

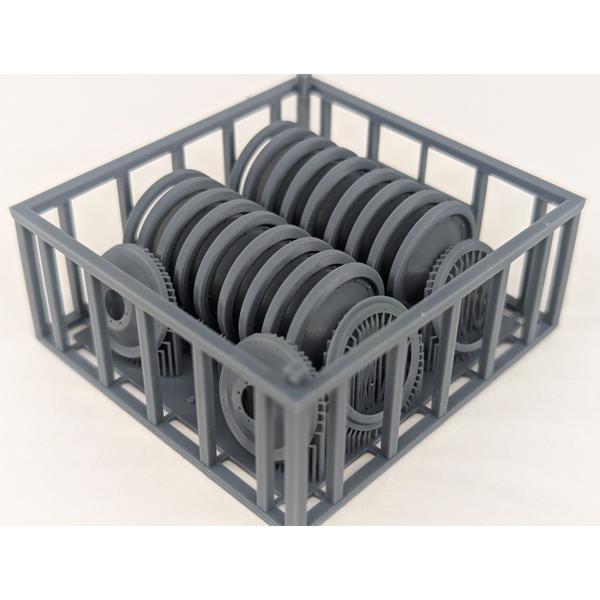

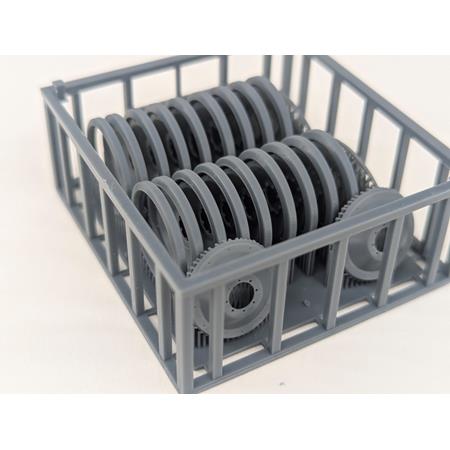

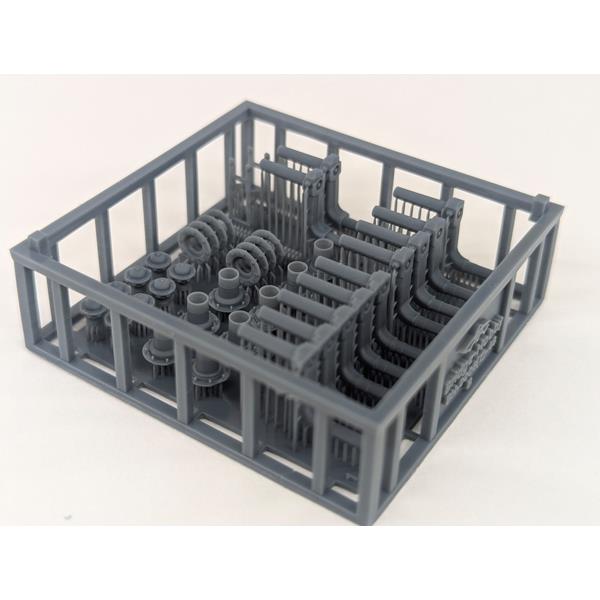

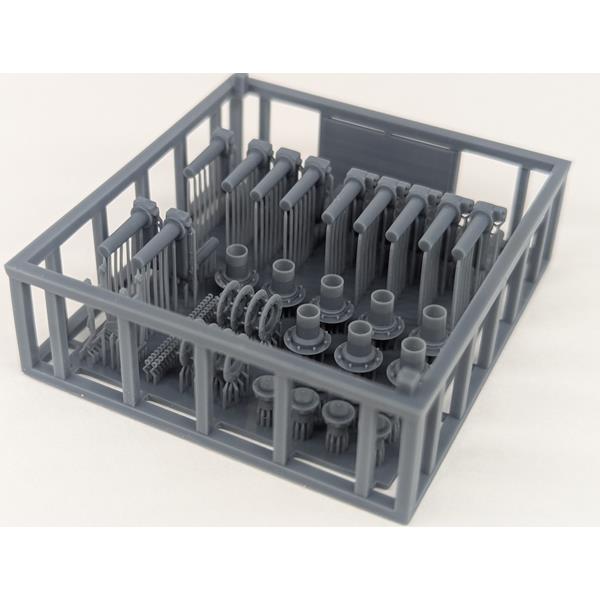

• Optimized 3D-printed supports for easy demolding of the parts
• Kits available separately for scales 1:35, 1:48, and 1:72
• Unpainted, unassembled
• Paint and glue not included

The Panther was equipped with The vehicle was equipped with 16 rubber-tired road wheels. These were designed as eight nested double road wheels, mounted on swing arms and connected to a damped double torsion bar suspension.

Each road wheel assembly consisted of an inner and an outer road wheel with identical, mirror-image wheel discs. The rubber tires were clamped between the wheel discs and removable rim rings, allowing for easy replacement.

The rim rings of the inner road wheels had a protective collar to shield them from the track guide teeth. The wheel discs were secured to the hubs using retaining rings. Two hub types were used, one for standard and one for reinforced swing arms.

This kit contains all the components for one side of the vehicle and is designed to depict realistic maintenance and repair scenes.
^{Text: Bridge-Hobby, Tokyo (translated from German into English using Google translater)}
